Overview​

This article is part of a series of articles covering specific Gold Standard settings for IP cameras on a manufacturer by manufacturer basis. Links to the other articles in this series are found below:

ManufacturerLink to BluINFO ArticleComments
Hanwa Vision / Wisenethttps://knowledge.blub0x.com/Documentation/Setup/System/Camera/Hanwa_Vision_and_Wisenet_IP_Camera_Gold_Standard_for_NVR
Arecont Vision
Milesight
Avigilon
Axis

Gold Standard Settings​

  • The settings below have been tested for the following models of Hanwa Vision / Wisenet IP cameras:​

  • XNB-6001 (with BBNVR 3.0.0.3)

  • Video Profile Settings (Basic -> Video Profile)​

  • You should have TWO H. 264 streams set up.

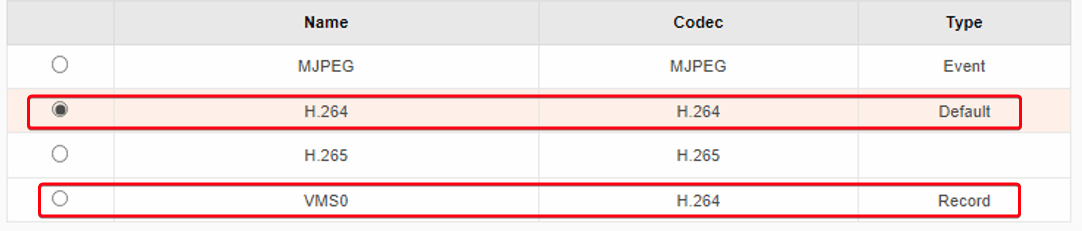

  • clipboard e647c22e5d1d31cad81fb41a556584f0b

  • Sometimes, a Hanwa Vision/Wisenet IP camera may come with other streams created by default. Check first that these streams are not being used by the building for other purposes. If they are not, it is recommended that you delete these unused streams, leaving the 4 pictured below. Due to a quirk in the UI, you will have to delete from the bottom-most option in the list and work your way to the top. Highlight the row you want to delete using the radio buttons in the first column of the video profles table, then hit the delete button to delete the profile. :

  • Screenshots have been included as a sanity check to cover certain settings that are pre-selected and then greyed out in the Hanwa / Wisenet UI.

  • Settings for the H. 264 Livestream stream:​

  • Name: <Naming Convention to be Decided On>

  • Codec: H.264

  • Profile Type:

  • Default Profile: Enabled (checked) (this is sometimes grayed out; see screenshots for Livestream stream settings below)

  • Edge Recording Profile: Disabled (unchecked)

  • Digital PTZ Profile: Disabled (unchecked)

  • Frame Lock Profile: Disabled (unchecked)

  • Audio in: Enabled (checked)

  • Crop Encoding: Disabled (unchecked)

  • Profile Properties:

  • Resolution:

  • Check what the native resolution is for the model of Hanwa/Wisenet camera you are configuring and choose the resolution to match.

  • | Resolution by aspect ratio | 16:9 | 16:10 | 4:3 | | --- | --- | --- | --- | | Live stream (width x height) | 1280 x 720 | 1280 x 800 | 1024 x 768 |

  • Frame Rate: 15 fps

  • Maximum Bitrate: 1536 kbps

  • Advanced:

  • Bitrate Control: VBR

  • GOV Length: 15

  • Profile: Main (critical for BBNVR that this is Main. "High" will not work with BBNVR and will prevent the BBNVR from picking up the stream.)

  • Entropy Coding: CABAC

  • Dynamic GOV: Disabled (unchecked)

  • Dynamic FPS: Disabled (unchecked)

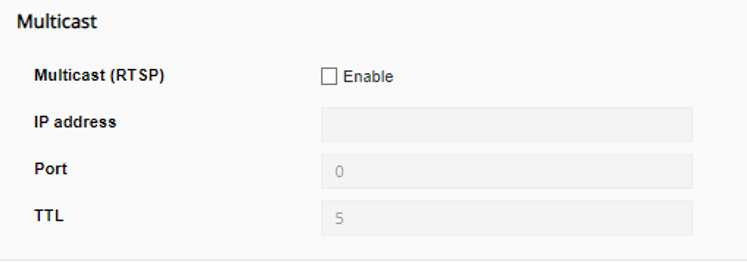

  • Multicast (RTSP): Disabled (unchecked)

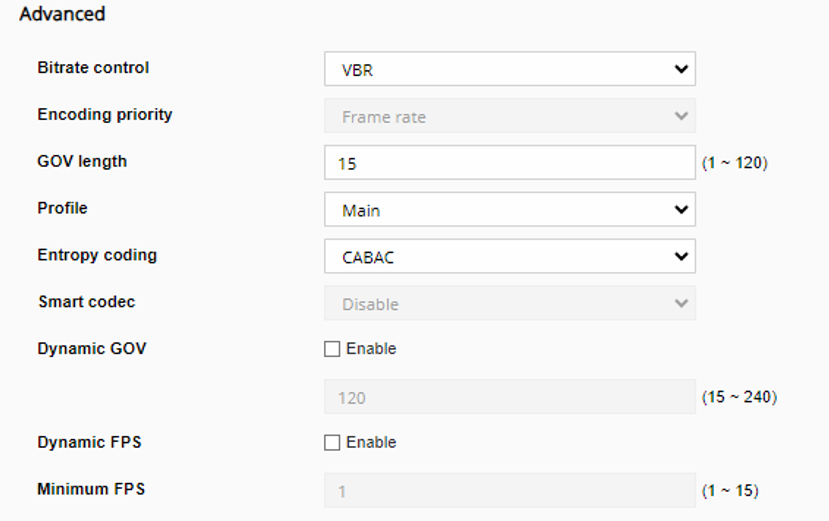

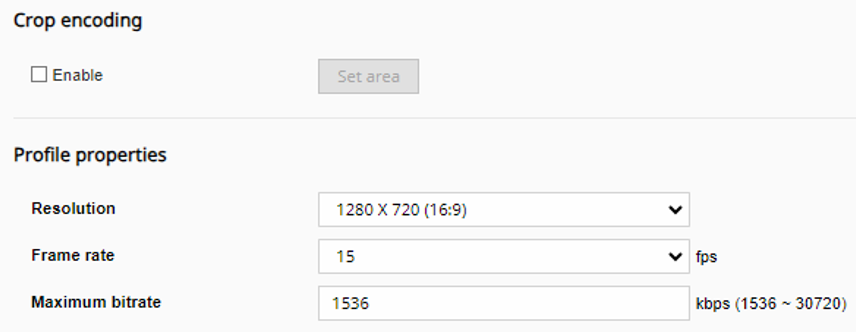

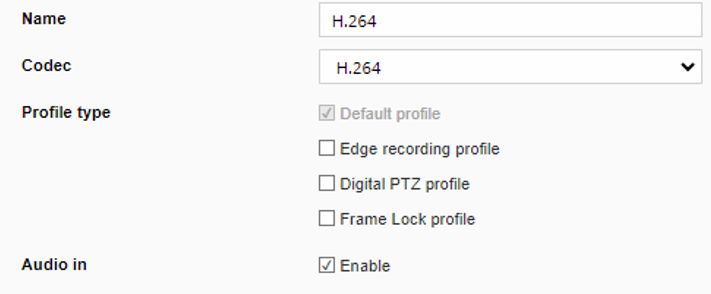

  • Screenshots from UI of all the above settings for the H. 264 Livestream stream:​

  • clipboard e34cc2ba15ba590942497b7f38be1a137

  • clipboard e03c5238971dc583e82122b5f6cd8a1ec

  • clipboard e7e3426b41861cd1c6b3076ac1b0b83ce

  • clipboard e4df23f2d265de2820c33ce337bb6c079

  • Settings for the H. 264 Recording stream:​

  • Name: <Naming Convention to be Decided On>

  • Codec: H.264

  • Profile Type:

  • Default Profile: Disabled (unchecked)

  • Edge Recording Profile: Enabled (checked) (this is sometimes grayed out; see screenshots for Recording stream settings below)

  • Digital PTZ Profile: Disabled (unchecked)

  • Frame Lock Profile: Disabled (unchecked)

  • Audio in: Enabled (checked)

  • Crop Encoding: Disabled (unchecked)

  • Profile Properties:

  • Resolution:

  • | Resolution by aspect ratio | 16:9 | 16:10 | 4:3 | | --- | --- | --- | --- | | Recorded stream | 1920 x 1080 | 1920 x 1200 | 1600 x 1200 |

  • Frame Rate: 15 fps

  • Maximum Bitrate: 2048 kbps

  • Advanced:

  • Bitrate Control: VBR

  • Profile: Main (critical for BBNVR that this is Main. "High" will not work with BBNVR.)

  • Multicast (RTSP): Disabled (unchecked)

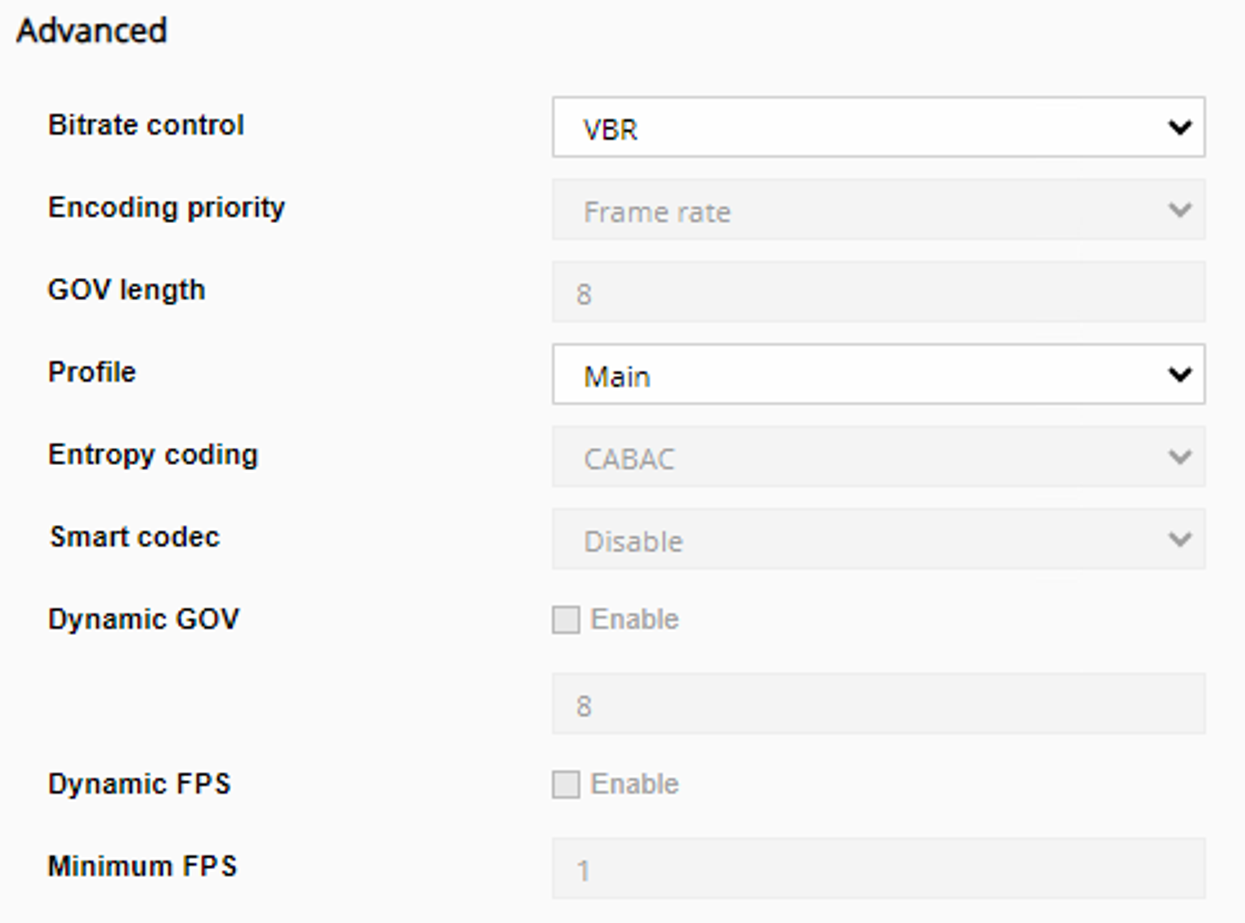

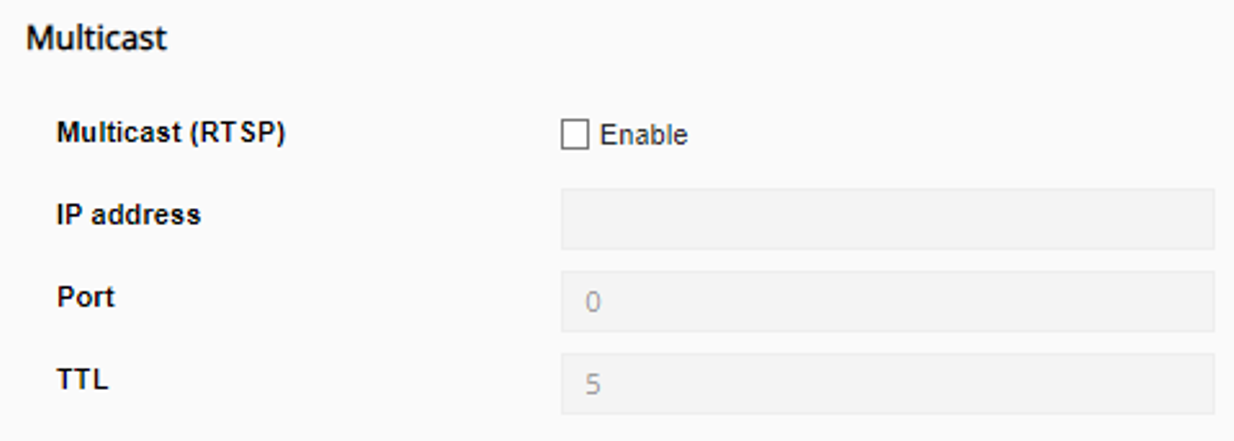

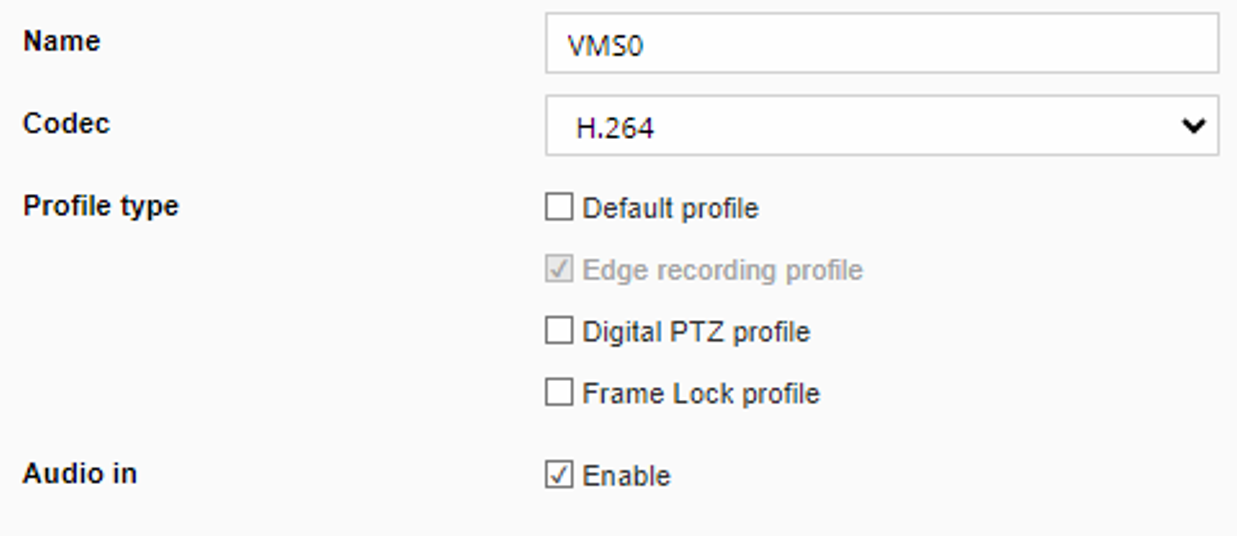

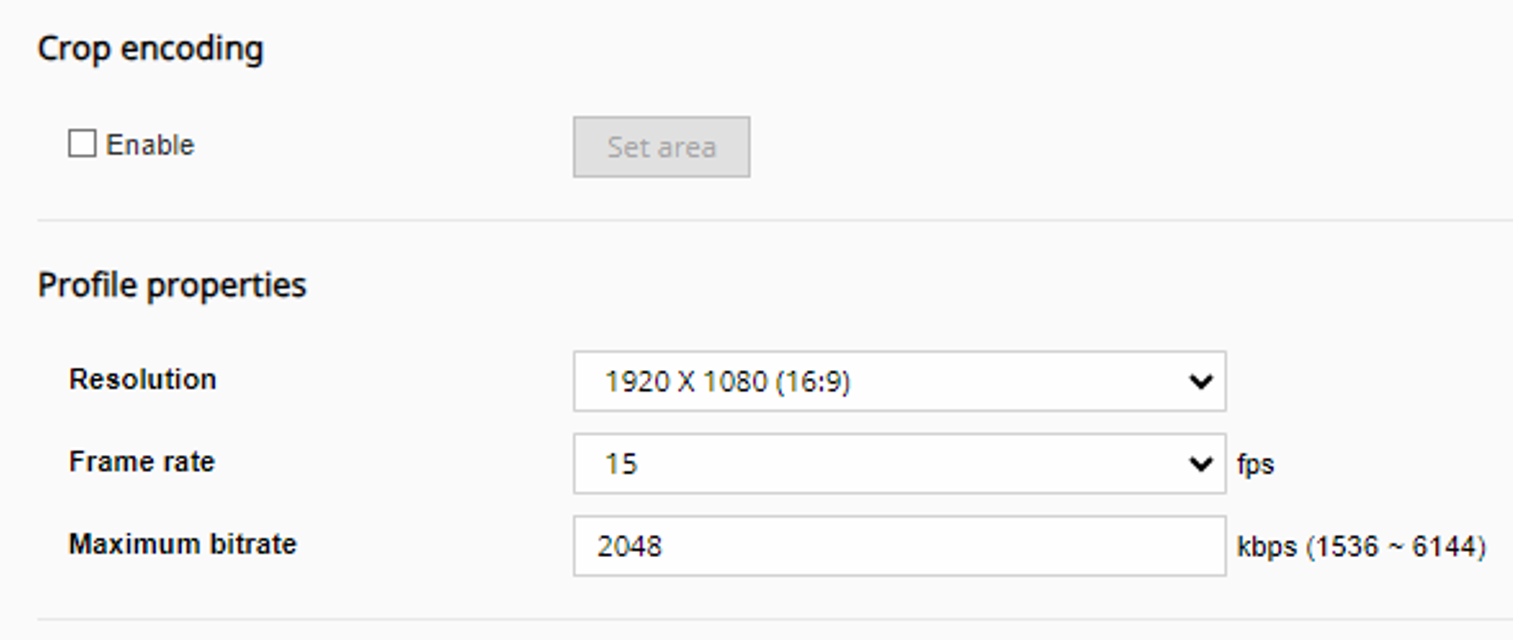

  • Screenshots from UI of all the above settings for the H. 264 Recording stream:​

  • clipboard ed795d273d1d3068e063a7a7e7af5e8bb

  • clipboard ed9589f7f9f12ca68a8b0b7d2dcbd051b

  • clipboard ee9e22364893429ff07561a1fda6a8e1f

  • clipboard e6935c91b9eb2ccf785d60b672cb3adca

  • Date and Time Settings (Basic -> Date & Time)​

  • Time Zone: <Select the time zone matching the building this camera is physically located>

  • Daylight Saving Time: Enabled (checked)

  • Synchronize with NTP Server: Enabled (radio button selected)

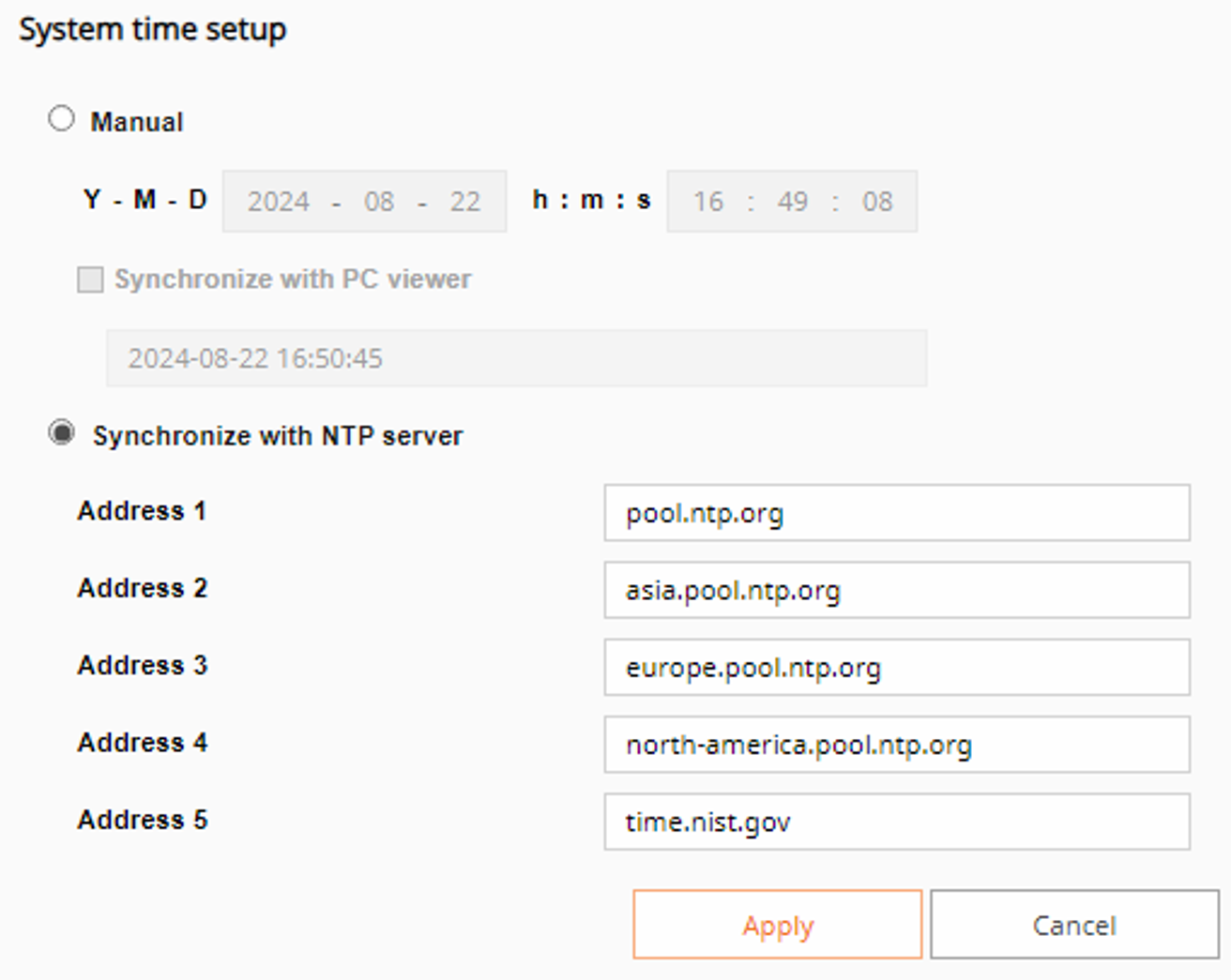

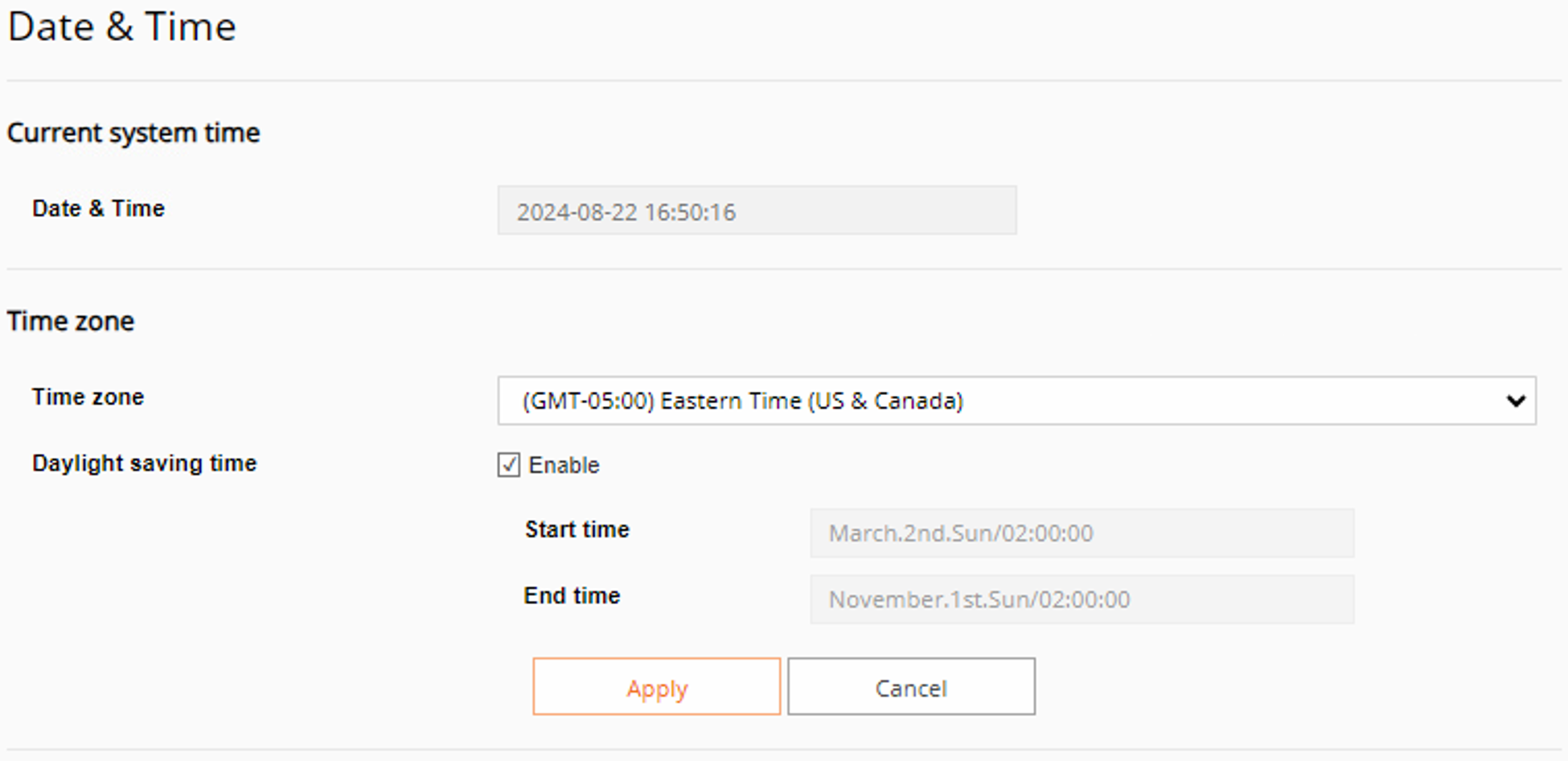

  • Screenshots from UI for Date and Time Settings:​

  • clipboard eed4c46b3b82728771b464dd93e86567e

  • clipboard e7fe628ed417e300ef1d06ba0f9d57178

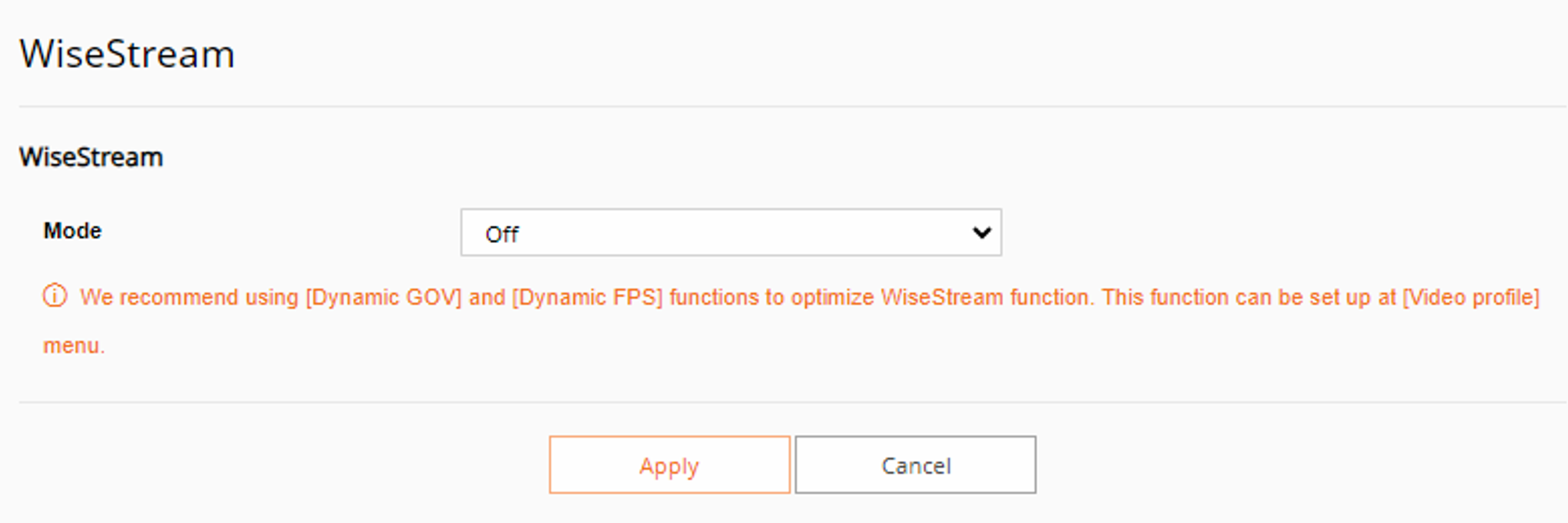

  • WiseStream Settings (Video & Audio -> WiseStream)​

  • WiseStream Mode: Off (selected from dropdown)

  • clipboard eb8ee2ff2762e7bb17a438d07b1aa8213

  • User Settings (Basic -> User)​

  • Guest settings - Allow guess access: Disabled (unchecked)

  • Authentication setup - Allow RTSP connection without authentication: Disabled (unchecked)

  • Current Users Table:

  • The user created here will be used as the ONVIF login/credential for the BBNVR. Both the username and password at both the camera end and the BBNVR device end are case sensitive.

  • To create a user for a Hanwa camera, use the "Add" button and add in your username and password. Enable all available privileges and select "All" for Profile. Click the checkmark box in the "Use" column - this tells the camera that you would like to enable this user. If you don't enable this column, the user will be saved but it will not be usable as either a login for accessing the configuration UI nor as an ONVIF credential for the BBNVR to pick up the camera's streams.

  • After fiilling in all the columns in your new user's row, hit "Apply."

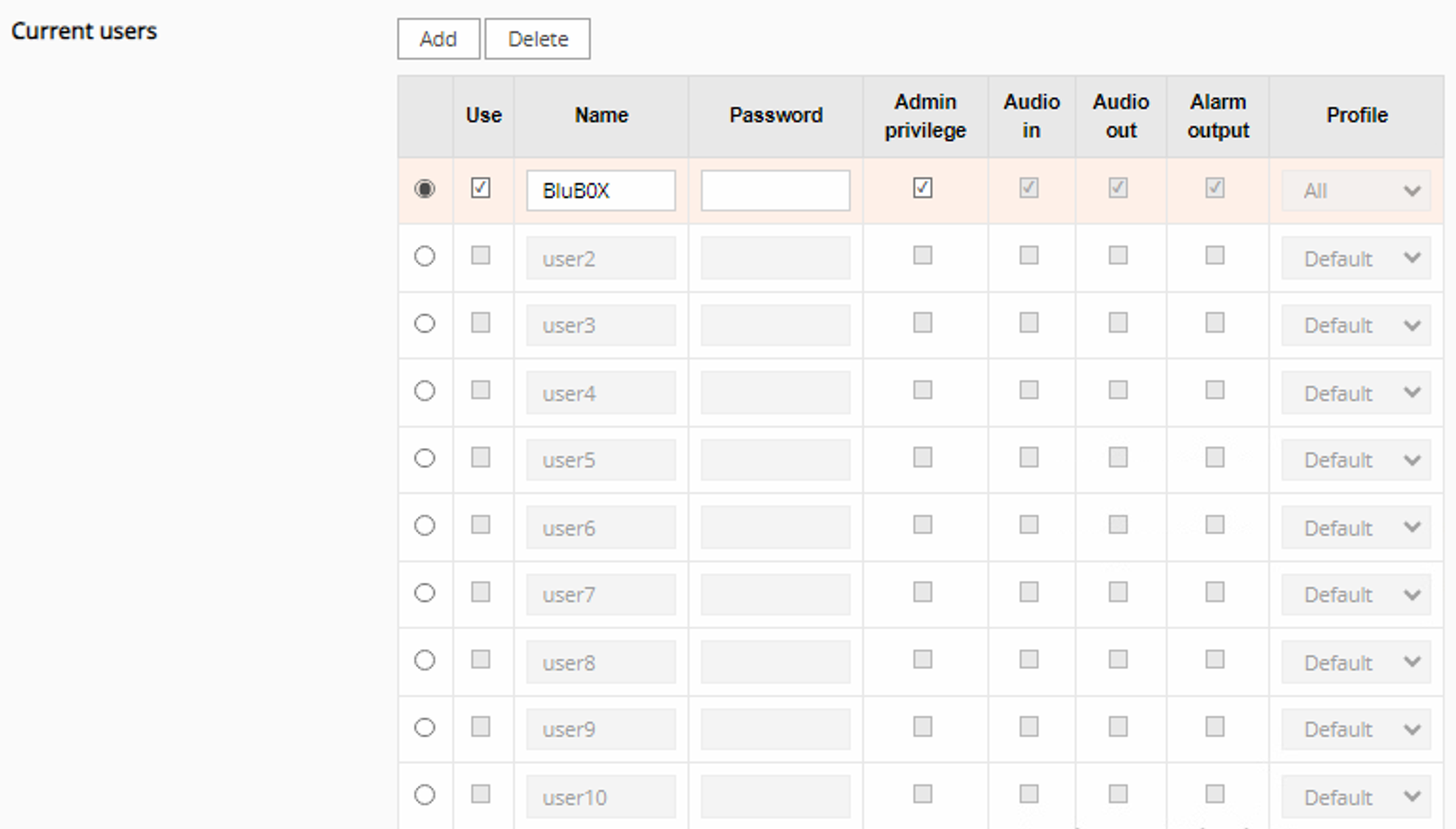

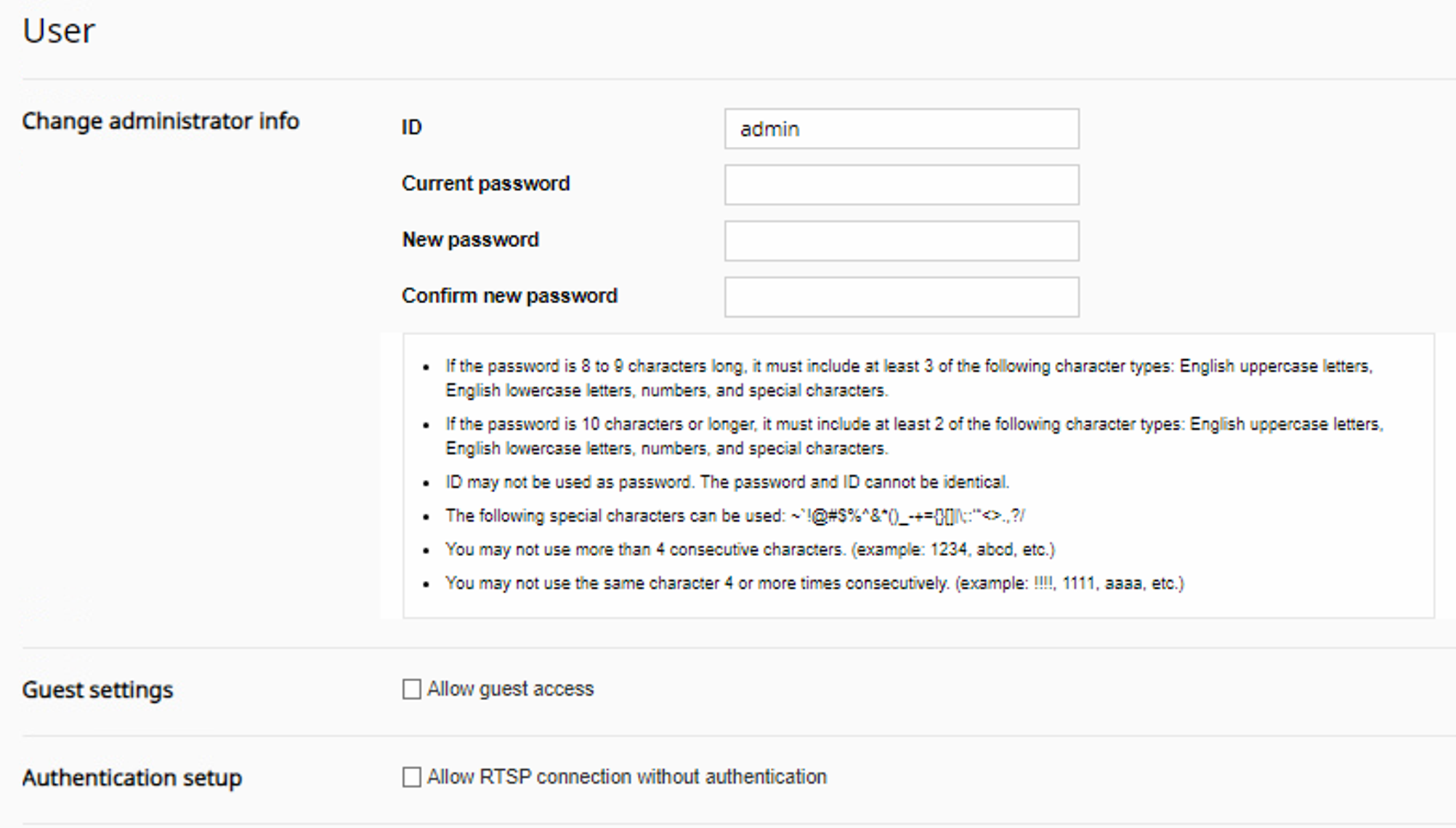

  • Once you have added your User, the users table should look like the second screenshot below. Notice the row with the BluB0X user and notice that the checkmark under the "Use" column is selected.:

  • clipboard ea396a3020c57c701962879bf69762f64

  • clipboard e9e62e6a6842e884bcc87c013a98d751e

  • Troubleshooting Notes​

  • I would suggest setting the configuration in the order given in this article (i.e. leaving the user configuration for last) so that the BBNVR's initial pick up of the camera stream comes with all the correct settings. I have seen cases where a user was set for a camera with a stream set to "High" instead of "Main" and it had stayed stuck in that setting in the BBNVR even after the stream had been changed to "Main". Leaving user configuration for last ensures that when the camera becomes visible to the BBNVR, it already has all the right settings on its streams.

  • Quad Hanwa cameras like the PNM-9085RQZ1 have not been tested on the BBNVR yet.
