Access, Alarms, Video, Visitor, Vendor, Relay Elevator
System Overview
Access, Alarms, Video, Visitor, Vendor, Relay Elevator
System Use

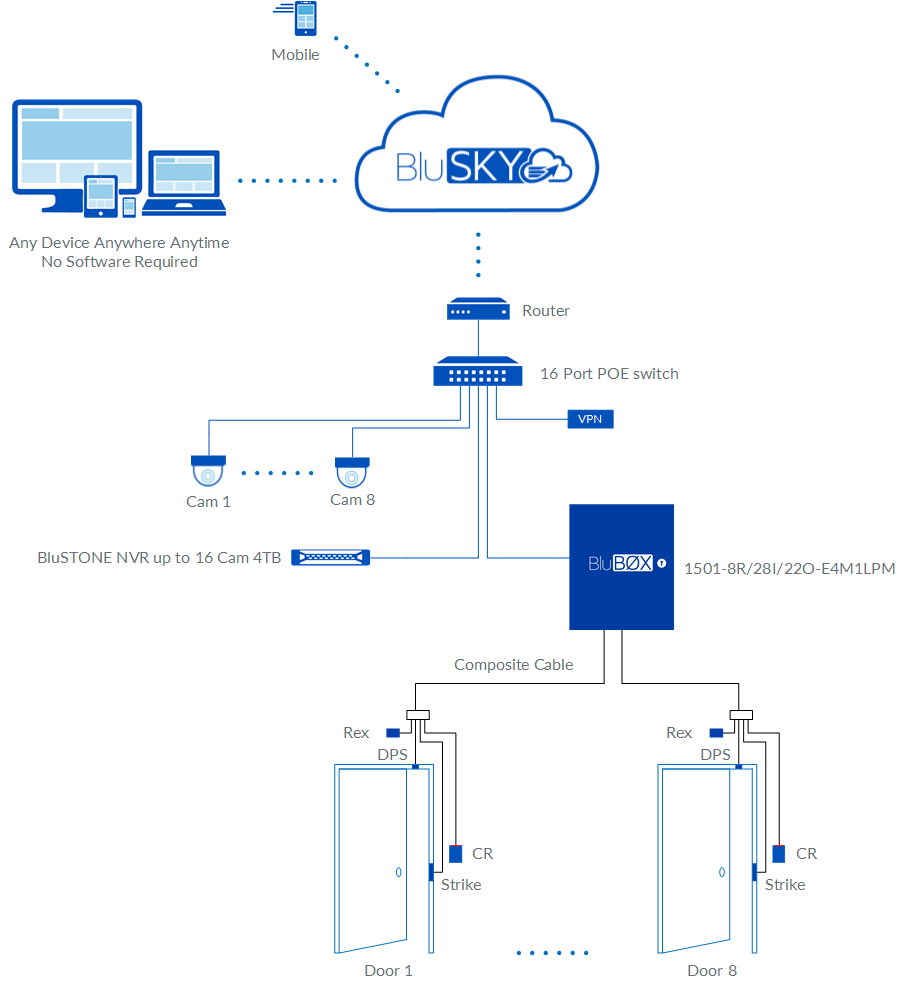

One Line System Diagram
BluBØX Equipment and Services
| Part # | Item | Description | Incl/Opt | Qty | Unit | Extended |
|---|---|---|---|---|---|---|
| 753-2000 | MR50-ECRBK Elevator Car Reader Kit | Elevator Car Reader Board Kit Includes 1 x MR50, 1 x Voltage regulator, and 1 x Mounting Hardware. | Included | 4 | $478.00 | $1,912.00 |
| 753-3200 | EMR-48RELAY Elevator Relay Kit | Elevator Relay Kit. Supports up to 48 Total Floor Stops. Includes 3 x Mercury MR16out, Enclosure, Power, Mounting Hardware. | Included | 1 | $3,192.00 | $3,192.00 |
| 753-1200 | 1502-EMRC-PM4 Elevator Controller Kit | Elevator Systems Controller - 1 to 8 Cars up to 32 SIOs. Supports Optional Floor ID. Supports remote power management for 1 addional enclosure PS. Kit: 1 x EP1502 1 x MUX8, 1 x NL4 , encl & power. SIO kits ordered separately. | Included | 1 | $3,027.00 | $3,027.00 |
| 221-1900 | Pro Dome Camera - Remote Focus and Zoom IR (Microphone/P-Iris/7~22mm Lens Special Order) | Pro Dome Camera - Remote Focus and Zoom IR - (Microphone/P-Iris/7~22mm Lens Special Order) - 1920x1080 @30fps - Motorized Zoom Lens 7-22mm - Color: 0.002Lux @F1.2 - POE - SD Card -140dB - H.264 / H.265 | Included | 4 | $647.50 | $2,590.00 |
| 490-1001 | Web Cam 2D | Web Cam - Logitech HD Pro Webcam C920 | Included | 2 | $140.00 | $280.00 |
| 228-0100 | BluSTONE NVR - BCDM02-VA-I3-1TB | BluSTONE NVR - 16 Cameras - mini desktop - Core i3 - Windows 7 Pro 64 bit - 4GB RAM - 128GB SSD - 1TB 7200RPM SATA - 1x 1GbE - 2 x 65Watt - 1.3"H x 6.9"W x7"D | Included | 1 | $1,568.00 | $1,568.00 |
| 483-2000 | PVC Printer - USB & Ethernet - Prints Visitor IDs on PVC cards | Printer - PVC - Evolis PM1H0000BS Primacy Simplex Expert Single Sided PhotoID Printer Blue - USB & Ethernet | Included | 2 | $2,766.00 | $5,532.00 |
| 165-0200 | Prox Plus-USB | Reader - Enrollment - RF Ideas- pcProx+ Enroll - RF proximity / SMART card reader - USB | Included | 2 | $250.00 | $500.00 |
| 160-2200 | Reader - HID RP40 iClass SE/Prox Wall Switch Wiegand Legacy | Reader - HID RP40 iClass SE/Prox Wall Switch Wiegand Legacy | Included | 12 | $266.00 | $3,192.00 |
| 460-0500 | Power Management Gateway | Compute Stick and Support hardware that supports communication between LSP NL2 (Part # 670-2000) or NL4 (Part # 670-2100) and BluSKY Power Diagnostics. | Included | 1 | $360.00 | $360.00 |
| 400-1000 | Router - CradlePoint MBR1200B Broadband Router | Router - CradlePoint MBR1200B Broadband Router | Optional | 1 | $434.00 | $0.00 |
| 410-1400 | 8 Port Unmanaged Gigabit Switch | Switch - HP ProCurve Switch 1410-8G (J9559A) | Optional | 2 | $132.00 | $0.00 |
| 775-0100 | Video Viewing Station | Video Viewing Station | Optional | 1 | $1,690.00 | $0.00 |
| 773-1200 | Visitor Admission Station - PC-Based - With PVC Badging | Visitor Admission Station - PC-Based - With PVC Badging | Optional | 1 | $4,811.00 | $0.00 |
| 320-1000 | Card - HID iClass w/ slot - 26 bit - QTY 50 | Card - HID iClass Composite PVC 2K/2Appl Areas Programed 26 bit FC 201 Blank Front and Back Matching sequential numbers horizontal slot | Included | 30 | $214.00 | $6,420.00 |
| 320-4051 | Credential - MiFare PVC 1K Cards - Un-encoded - - QTY100 | Credential - MiFare Printable 1K Cards 1 Kbyte 16 sectors 4 blocks 100pk | Included | 5 | $44.00 | $220.00 |
| 800-8020 | On Site SR Tech Support - Excl. T&M - Business Hours | Technicial Support - On-Site - Manager-Level - Excludes Travel & Lodging - Business Hours - Min: 4 hrs. - PER HOUR: | Included | 65 | $97.00 | $6,305.00 |
| 800-1225 | Project Management - Business Hours | Project Management - Remote - Business Hours - Min: 4 hrs. -PER HOUR: | Included | 50 | $182.00 | $9,100.00 |
| 800-0400 | Training - Video Conference - Business Hours | Training - Video Conference - Business Hours - PER HOUR: | Included | 24 | $97.00 | $2,328.00 |
| 800-5340 | BluSKY Database Construction Services | BluSKY Database Construction Services - Min: 4 hrs. - PER HOUR: | Included | 50 | $145.00 | $7,250.00 |
BluSKY Licenses
| Part # | Item | Description | Unit Qty | Incl/Opt | Qty | Unit | Extended |
|---|---|---|---|---|---|---|---|
| 817-0100 | Platform | Security system infrastructure and database usage. Required for any use of BluSKY. Based on number of ACTIVE users in the System's database, excluding deleted and suspended. Pre-requisite for any other BluSKY license. | per User in a System | Included | 500 | $1.33 | $665.00 |
| 817-0120 | Photo ID Badging | Capture and storage of user and vendor photos and printing of Photo-ID Badges. Pre-Requisite for on-screen Photo-ID Verification, Biometric Log In, and Person Readers. | per User in a System | Optional | 500 | $0.63 | $0.00 |
| 817-0860 | Visitor/Vendor ID | Capture and Storage of visitor or Vendor Drivers License information - First and Last Name and photo of license. Requires an ID Scanner, Part # 490-9004 or xxx-xxxxx. Pre-Requisite: 817-0820 | per User per Facility | Included | 500 | $0.41 | $205.00 |
| 817-0820 | Visitor Processing | License covers visitor pre-registration, visitor admission, watchlist checking, visitor badge printing. Optional features: visitor/vendor photos - credential capture, BluPASS credentials, vendor processing and RAND licenses. | per User per Facility | Included | 500 | $5.53 | $2,764.00 |
| 817-0840 | Visitor Photo & Badging | Capture and storage of visitor photos. Includes the ability to take photos with smartphones, tablets and 2D/3D webcams. Printing of visitor Photo ID badges. Pre-Requisite: 817-0820 | per User per Facility | Included | 500 | $0.41 | $205.00 |
| 817-0960 | Vendor Processing | Vendor invitations and admissions functionality. | per User per Facility | Included | 500 | $1.50 | $748.00 |
| 817-1000 | Vendor Photo & Badging | Capture and storage of vendor photos. Includes the ability to take photos with smartphones, tablets and 2D/3D webcams. Printing of visitor Photo ID badges. Pre-Requisite: 817-0960 | per User per Facility | Included | 500 | $0.19 | $93.00 |
| 817-0950 | Vendor Management | Vendor services, Vendor approval status, Vendor COI status. | per Vendor Co. per Facility | Included | 500 | $3.50 | $1,750.00 |
| 817-0140 | VPN | VPN service for remote support of local hardware. Pre-requisite for DDE and video systems. Recommended for systems with on- premise Client PCs or Servers. | per System | Included | 1 | $450.00 | $450.00 |
| 817-0320 | Reader | Required for every reader | Per Reader | Included | 12 | $145.00 | $1,740.00 |
| 817-1080 | Power Management | Power Management. | per Device | Included | 1 | $200.00 | $200.00 |
| 817-0600 | Alarm and Intrusion | Core alarm and intrusion functionality - includes alarm group and alarm point configuration, real-time alarm display, response to alarms, and virtual keypad for arming and disarming. Integrates with RAND for expanded functionality. | per Sensor | Included | 8 | $23.65 | $189.00 |
| 817-0760 | Local NVR Integration | Connection of one camera to a local NVR (other than BluSTONE) for recording. Includes ability to configure the camera and the video events in BluSKY. Under this license, no video is sent to BluSKY, or available for playback in BluSKY. | per Camera | Included | 4 | $75.00 | $300.00 |
| 817-0700 | Local + Cloud Video | Connection of one camera to a BluSTONE (local) or to the BluMILE(Cloud) NVR, and transmission of video events to BluSKY for recording and playback. | per Camera | Included | 4 | $229.43 | $918.00 |
| 817-1220 | System Health | Monitoring of BluSKY/BluCHIP software, hardware, database, security, power, and communications. Also includes analytics, intelligent rules, events, notifications and integration with distribution lists. | % other Licenses | Included | 1 | $511.35 | $511.35 |
| 817-0520 | System Analytics | Statistical analysis of all access control, alarm, video, vendor, DDE, visitor & incident events - displays the analytics, including counting, binning, trending, pattern recognition, correlation analysis and unusual event detection. Integrates with RND. | % other Licenses | Included | 1 | $1,022.70 | $1,022.70 |
| 817-1120 | Intelligence | Intelligence functionality for all BluSKY modules - includes simple and complex rule creation and analytics - events - notifications - distribution lists integration. BluSKY includes hundreds of standard intelligent rules out-of-the-BØX. | % other Licenses | Included | 1 | $2,045.40 | $2,045.40 |
MSRP Installed Cost
#Describe the costs
8_Reader_Access%2BAlarms%2BVideo%2BVisitor%2BVendor%2BRelay_Elevator-Sample.pdf
Commentary
