Kits Using the EP1502
Overview
BluBØX kits that use the Mercury EP1502 are intended for larger systems. The EP1502 is capable of handling up to 64 Readers, 520 Inputs and 516 Outputs, depending on which SIO Boards are selected. The Controller is also capable of handling up to 250,000 users and can have up to 8 card types. In this section of training, we take a look at some of the kits that we offer based off the Mercury EP1502.
Check out all of the Mercury EP1502 Kits we offer!

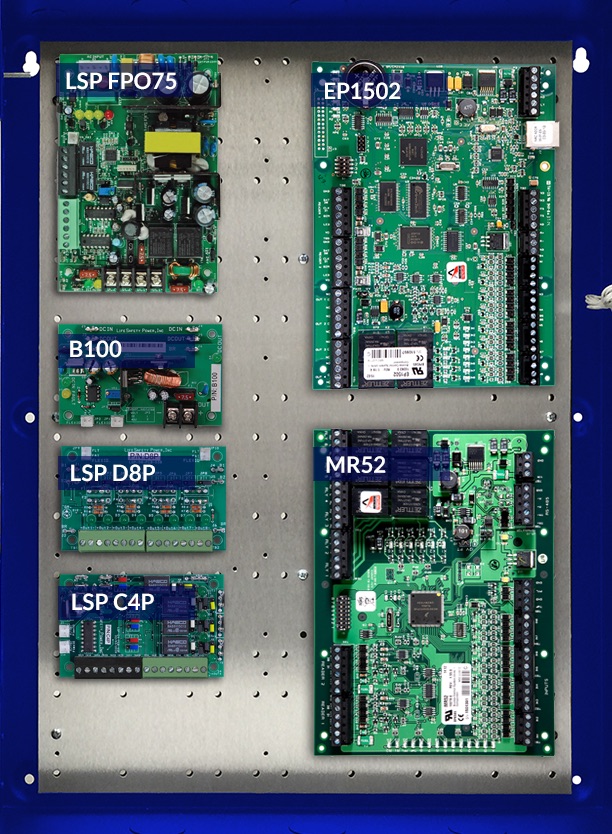

Kit Includes
| MFG Part # | BluBØX Order # | QTY | Description |
|---|---|---|---|
| LP1502 | 120-1101 | 1 | Mercury LP1502: Two door DB controller Ethernet 12/24VDC Auxiliary I/O |
| MR52-S3 | 120-2501 | 3 | Mercury MR52-S3: Two door controller & auxiliary I/O 12/24VDC |
| E4ML-SK-4T | 577-3040 | 1 | BluBØX E4ML-SK-4T Speed Kit: Four board precut DC power, RS485 and lock trigger wiring kit |
| FPO150-B100M8PD8PNL4E4M1-NLKIT | 670-1463 | 1 | LifeSafety Power: Eight door power supply w/ power distribution and management, includes enclosure |
