HID Mobile Access Ordering Information

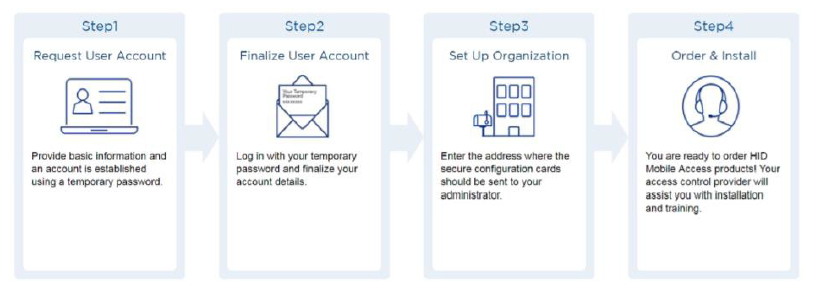

New Mobile Onboarding Process is now done on line via the link below. https://managedservices.hidglobal.com/faces/maUserOnBoardingStart
Mobile Enabled Readers:
Readers that come with the MOB key pre-loaded from the HID Factory.
ICLASS SE 2.4 GHz and 13.56 MHz only - Red LED 900NMNNEKEA001 - R10 (Mini-Mullion) with Pigtail 910NMNNEKEA001 - R15 (Mullion) with Pigtail 920NMNNEKEA001 - R40 (Wallswitch) with Pigtail 921NMNNEKEA002 - RK40 (Wallswitch Keypad) with Pigtail 900NMNTEKEA001 - R10 (Mini-Mullion) with Terminal Strip 910NMNTEKEA001 - R15 (Mullion) with Terminal Strip 920NMNTEKEA001 - R40 (Wallswitch) with Terminal Strip 921NMNTEKEA002 - RK40 (Wallswitch Keypad) with Terminal Strip
multiCLASS SE 2.4 GHz, 13.56 MHz & 125 kHz - Red LED 900PMNNEKEA003 - RP10 (Mini-Mullion) with Pigtail 910PMNNEKEA003 - RP15 (Mullion) with Pigtail 920PMNNEKEA003 - RP40 (Wallswitch) with Pigtail 921PMNNEKEA004 - RPK40 (Wallswitch Keypad) with Pigtail 900PMNTEKEA003 - RP10 (Mini-Mullion) with Terminal Strip 910PMNTEKEA003 - RP15 (Mullion) with Terminal Strip 920PMNTEKEA003 - RP40 (Wallswitch) with Terminal Strip 921PMNTEKEA004 - RPK40 (Wallswitch Keypad) with Terminal Strip
iCLASS SE 2.4 GHz and 13.56 MHz only - Blue LED 900NMNNEKEA0CH - R10 (Mini-Mullion) with Pigtail 910NMNNEKEA0CH - R15 (Mullion) with Pigtail 920NMNNEKEA0CH - R40 (Wallswitch) with Pigtail 921NMNNEKEA0CJ - RK40 (Wallswitch Keypad) with Pigtail 900NMNTEKEA0CH - R10 (Mini-Mullion) with Terminal Strip 910NMNTEKEA0CH - R15 (Mullion) with Terminal Strip 920NMNTEKEA0CH - R40 (Wallswitch) with Terminal Strip 921NMNTEKEA0CJ - RK40 (Wallswitch Keypad) with Terminal Strip
multiCLASS SE 2.4 GHz, 13.56 MHz & 125 kHz - Blue LED 900PMNNEKEA0CG - RP10 (Mini-Mullion) with Pigtail 910PMNNEKEA0CG - RP15 (Mullion) with Pigtail 920PMNNEKEA0CG - RP40 (Wallswitch) with Pigtail 921PMNNEKEA0CK - RPK40 (Wallswitch Keypad) with Pigtail 900PMNTEKEA0CG - RP10 (Mini-Mullion) with Terminal Strip 910PMNTEKEA0CG - RP15 (Mullion) with Terminal Strip 920PMNTEKEA0CG - RP40 (Wallswitch) with Terminal Strip 921PMNTEKEA0CK - RPK40 (Wallswitch Keypad) with Terminal Strip
Mobile Ready Readers:
Reader includes Bluetooth Module & firmware / assemblies. (MOB keys are not loaded at the factory) MOB keys will need to be loaded in the field.
iCLASS SE - 2.4 GHz and 13.56 MHz only - Red LED 900NMNNEKMA001 - R10 (Mini-Mullion) with Pigtail 910NMNNEKMA001 - R15 (Mullion) with Pigtail 920NMNNEKMA001 - R40 (Wallswitch) with Pigtail 921NMNNEKMA002 - RK40 (Wallswitch Keypad) with Pigtail 900NMNTEKMA001 - R10 (Mini-Mullion) with Terminal Strip 910NMNTEKMA001 - R15 (Mullion) with Terminal Strip 920NMNTEKMA001 - R40 (Wallswitch) with Terminal Strip 921NMNTEKMA002 - RK40 (Wallswitch Keypad) with Terminal Strip
multiCLASS SE 2.4 GHz, 13.56 MHz & 125 kHz - Red LED 900PMNNEKMA003 - RP10 (Mini-Mullion) with Pigtail, 910PMNNEKMA003 - RP15 (Mullion) with Pigtail 920PMNNEKMA003 - RP40 (Wallswitch) with Pigtail 921PMNNEKMA004 - RPK40 (Wallswitch Keypad) with Pigtail 900PMNTEKMA003 - RP10 (Mini-Mullion) with Terminal Strip 910PMNTEKMA003 - RP15 (Mullion) with Terminal Strip 920PMNTEKMA003 - RP40 (Wallswitch) with Terminal Strip 921PMNTEKMA004 - RPK40 (Wallswitch Keypad) with Terminal Strip
iCLASS SE - 2.4 GHz and 13.56 MHz only - Blue LED 900NMNNEKMA0CH - R10 (Mini-Mullion) with Pigtail 910NMNNEKMA0CH - R15 (Mullion) with Pigtail 920NMNNEKMA0CH - R40 (Wallswitch) with Pigtail 921NMNNEKMA0CJ - RK40 (Wallswitch Keypad) with Pigtail 910NMNTEKMA0CH - R10 (Mini-Mullion) with Terminal Strip 900NMNTEKMA0CH - R15 (Mullion) with Terminal Strip 920NMNTEKMA0CH - R40 (Wallswitch) with Terminal Strip 921NMNTEKMA0CJ - RK40 (Wallswitch Keypad) with Terminal Strip
multiCLASS SE 2.4 GHz, 13.56 MHz & 125 kHz - Blue LED 900PMNNEKMA0CG - RP10 (Mini-Mullion) with Pigtail, 910PMNNEKMA0CG - RP15 (Mullion) with Pigtail 920PMNNEKMA0CG - RP40 (Wallswitch) with Pigtail 921PMNNEKMA0CK- RPK40 (Wallswitch Keypad) with Pigtail 900PMNTEKMA0CG - RP10 (Mini-Mullion) with Terminal Strip 920PMNTEKMA0CG - RP40 (Wallswitch) with Terminal Strip 921PMNTEKMA0CK - RPK40 (Wallswitch Keypad) with Terminal Strip
New Mobile Credential Part Numbers:
Mobile-ID: (Minimum Order is 100)
• Must Provide Org # or Company Name, MOB Key, Format, Facility Code and Number Range • If Corp 1000 customer only provide Org # or Company Name, Format, and MOB KEY
Mobile-ID-TEMP7: (7 Day Self Expiring) (Minimum Order 500)
• Must Provide Org # or Company Name, MOB Key, Format, Facility Code and Number Range • If Corp 1000 customer only provide Org # or Company Name, Format, and MOB KEY
SEC9X-CRD-MADD: (Mobile Admin Card)
• Admin card to change read range settings in the reader • Used with the BLE Configuration App • Must Provide Org # or Company Name and MOB Key • Min Order Qty - 1
SEC9X-CRD-E-MKYD (Mobile Key Card)
• Configuration Card used to load a MOB key on to a reader in the field • Must be ordered with a MOB key referenced • Min Order Qty - 1
Training
Mobile Access Video**:** https://www.youtube.com/watch?v=ztkngP5jfjI&feature=youtu.be
HID Training Academy**:**
It’s recommended and highly encouraged that the below mobile sales & technical training modules are taken on the HID Training Academy prior to selling or installing this solution https://hidglobal.csod.com/client/hi...l/default.aspx
Mobile Modules**:**
• HID Mobile Access® Sales Training • HID Mobile Access Administration Portal Technical Training v1 • iCLASS SE Mobile Access Reader Technical Training • HID Mobile Access: How to Configure Readers Using the HID Mobile Access BLE Configuration App
PLEASE NOTE*! Specifications contained herein are subject to change without notice. HID is not responsible for any typographical errors.*
