Mercury Board Takeover Info
##
Panel Identification

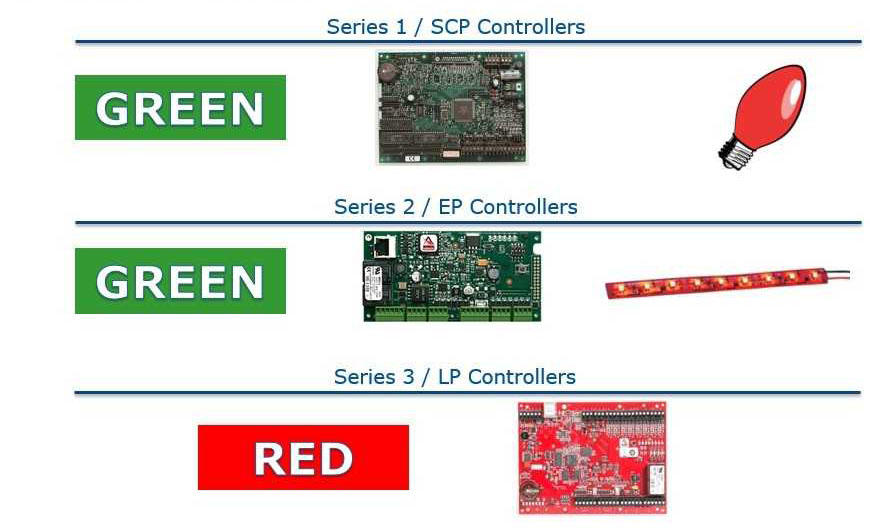

The color of the board itself and the type of LED on the board are the easiest identifiers.
- Series 1 SIO panels and SCP intelligent controllers are green boards, and have round LEDs
- Series 2 SIO panels and EP Series intelligent controllers are also green boards, but the LEDs are low profile and square
- Series 3 SIO panels and LP Series intelligent controllers are red boards
| Series | Replace or Reuse |
| Series 1: SCP-C, SCP-S, SCP-E | Replace |
| Series 2: EP | Reuse |
| Series 3: LP | Newest series - Reuse |
