24 Car DDE PACS - Readers Connected to DDE System
System Overview
24 Car Destination Dispatch Elevator Physical Access Control System - Readers Connected to DDE System
System Use

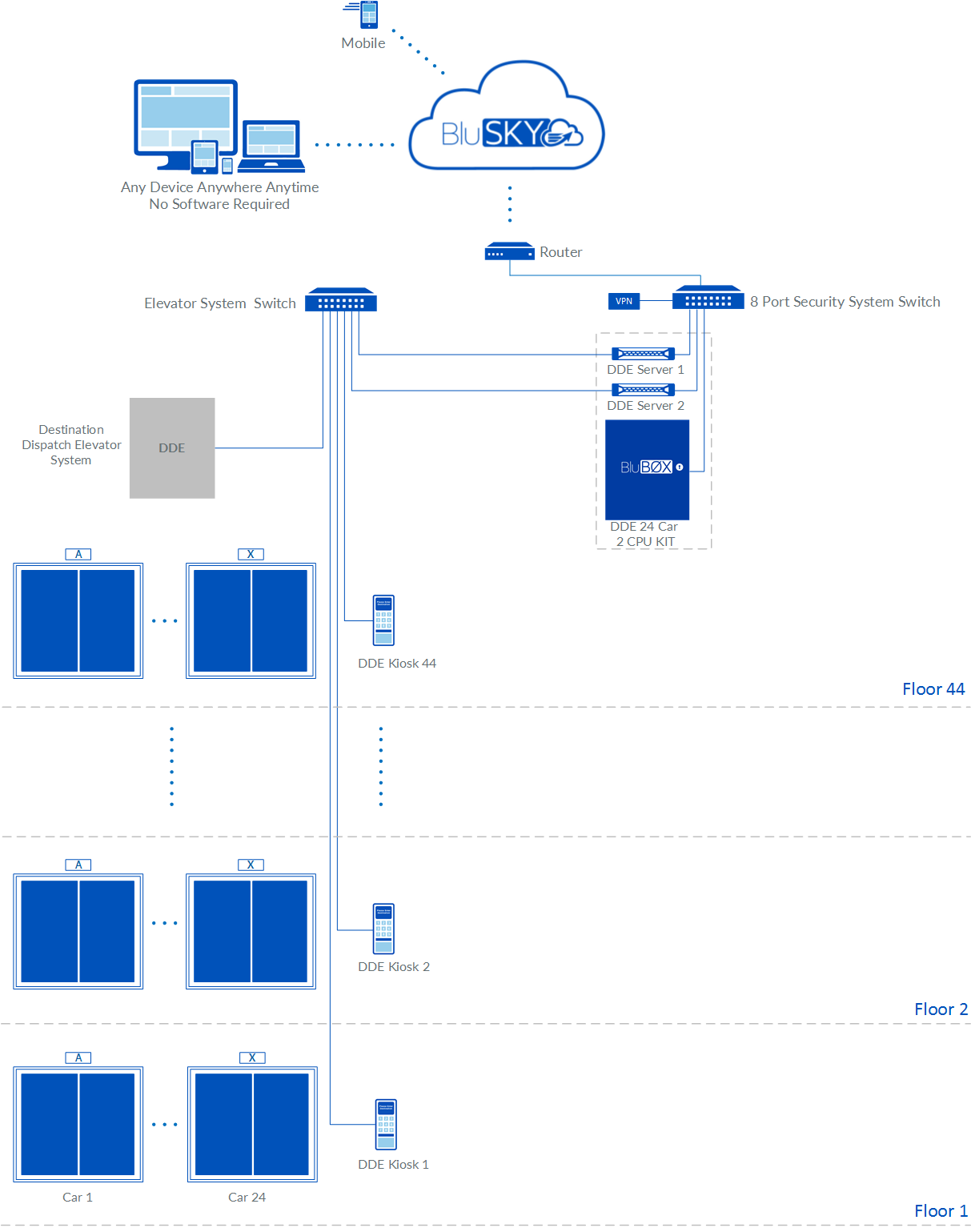

One Line System Diagram
Download the pdf: 24_Cars_44_DDE_KP_Rev_02.pdf
BluBØX Equipment, Software and Professional Services
| Part # | Item | Description | Incl/Opt | Qty | Unit | Extended |
|---|---|---|---|---|---|---|
| 770-2020 | 24 Car - 2 CPU DDE Kit | Destination Dispatch Processor Kit - Up to 24 Elevator Cars - Dual Processor System - includes BluB0X Destination Dispatch Elevator Integration Software - installation & commissioning requires Professional Services Item # 800-5125. | Included | 1 | $28,422 | $28,422 |
| 670-1463 | FPO150-B100D8PM8PNL4E4M1 w P/S | BluB0X E4M1 Enclosure - 24x20x4.5 - w/an FPO150-B100D8PM8PNL4 4A/12V & 8A/24V dual Power Supply, w/ 8 Class II, and an 8 channel lock control. | Included | 1 | $1,075 | $1,075 |
| 460-0500 | Power Management Gateway | Compute Stick and Support hardware that supports communication between LSP NL2 (Part # 670-2000) or NL4 (Part # 670-2100) and BluSKY Power Diagnostics. | Included | 1 | $360 | $360 |
| 800-5740 | Prof. Serv. - DDE Integration* | Prof. Serv. - DDE Integration - Flat Fee | Included | 1 | $5,000 | $5,000 |
| PS-15 | Prof. Serv. - VPN* | Prof. Serv. - VPN - Flat Fee | Included | 1 | $400 | $400 |
*One-time professional services
Devices and Labor are not included.
BluSKY Licenses
| Part # | Item | Description | Unit Qty | Incl/Opt | Qty | Unit | Extended |
|---|---|---|---|---|---|---|---|
| 817-0100 | Platform* | Covers the use of the systems' infrastructure and databases and other basic functionality. Includes the ability for users with proper permissions to release secured portals or floors using a smartphone. (BluREMOTE) Includes Photo-ID and Badge Printing. | per User | Included | 3,500 | $1.76 | $6,169 |
| 817-1120 | Intelligence* | Umbrella License: provides features such as rule creation, analytics, and notifications - distribution lists. Includes System Health and Analytics. | % other Licenses | Included | 1 | $3,277 | $3,277 |
| 817-0160 | VPN* | VPN service: Needed for monitoring and remote support for the on-premises security network. Also for certain features such as DDE or Video Playback. | per Facility Served | Included | 1 | $500 | $500 |
| 817-0780 | DDE Support* | Support License for the BluSKY Interface software to a DDE Elevator System. Mandatory anytime BluSKY is interfacing with a DDE System. | per Elevator | Included | 24 | $250 | $6,000 |
| 817-0320 | Reader* | Channel License for (1) Reader. | Per Reader | Included | 44 | $101.47 | $4,465 |
| 817-0800 | DDE Keypad* | Channel License for every DDE Elevator System "kiosk" or "keypad". (Required because BluSKY must manage every kiosk or keypad). If the kiosk or keypad includes a reader, a separate reader license is also needed. | per Device | Included | 44 | $50.73 | $2,232 |
| 817-1080 | Power Management* | Per-Device Power Management License. | Per Device per Facility | Included | 1 | $240 | $240 |
*Required Licenses
