64 Camera System
System Overview
64 Camera System
System Use

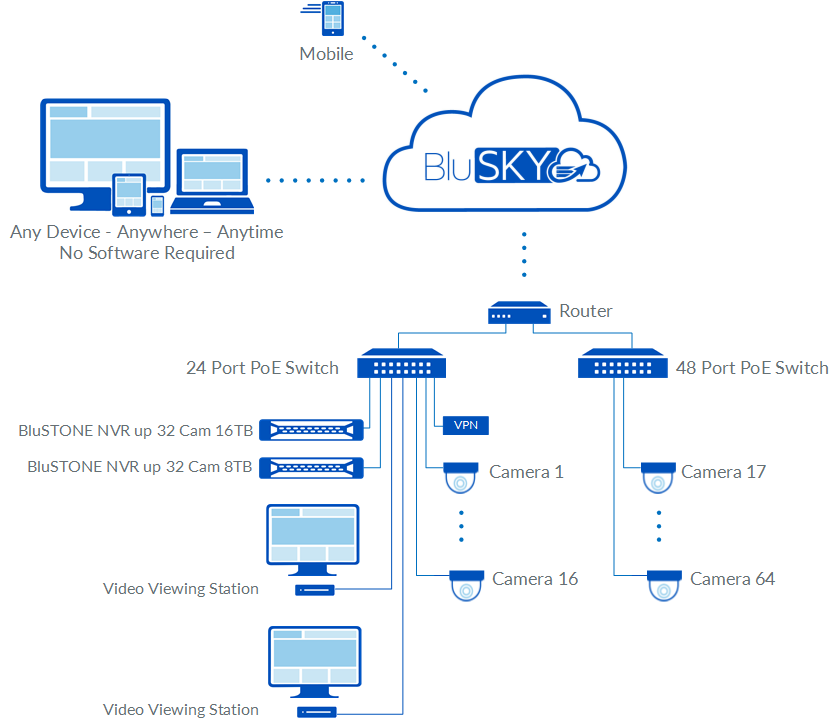

One Line System Diagram
Download the pdf: 64_Cameras_Rev_01.pdf
BluBØX Equipment, Software and Professional Services
| Part # | Item | Description | Incl/Opt | Qty | Unit | Extended |
|---|---|---|---|---|---|---|
| 228-1100 | BluSTONE NVR - BCDSF03-VA-17-16TB | BluSTONE NVR - 32 Cameras - Small Form Factor - Core i5-6700 - Windows 7 Pro 64 bit - 8GB RAM - 128GB SSD - 2x8TB 7200RPM SATA - 240Watt - 1x 1GbE - 3.9"H x 13.3"W x 15"D | Included | 1 | $3,902 | $3,902 |
| 228-0900 | BluSTONE NVR - BCDSF03-VA-17-8TB | BluSTONE NVR - 32 Cameras - Small Form Factor - Core i5-6700 - Windows 7 Pro 64 bit - 8GB RAM - 128GB SSD - 8TB 7200RPM SATA - 240Watt - 1x 1GbE - 3.9"H x 13.3"W x 15"D | Included | 1 | $3,127 | $3,127 |
| 817-1450 | One Time SW License - NVR Integration License - Per Camera** | One Time SW License - NVR Integration License - Per Camera | Included | 64 | $75 | $4,800 |
| PS-12 | Prof. Serv. - Video Integration | Prof. Services - Video Integration - Per Hr. | Included | 32 | $150 | $4,800 |
| PS-15 | Prof. Serv. - VPN | Prof. Serv. - VPN - Flat Fee | Included | 1 | $400 | $400 |
Part #'s 817-1450, PS-12, and PS-15 are all required one-time fees.
*Milestone XProtect Corporate is included with all NVR's purchased through BluBØX.
**One-time NVR Integration software is required. This is our software fee based on the number of cameras to integrate to BluSKY.
Devices and Labor are not included.
BluSKY Licenses
| Part # | Item | Description | Unit Qty | Incl/Opt | Qty | Unit | Extended |
|---|---|---|---|---|---|---|---|
| 817-0100 | Platform* | Covers the use of the systems' infrastructure and databases and other basic functionality. Includes the ability for users with proper permissions to release secured portals or floors using a smartphone. (BluREMOTE) Includes Photo-ID and Badge Printing. | per User | Included | 1,000 | $2.50 | $2,503 |
| 817-1120 | Intelligence* | Umbrella License: provides features such as rule creation, analytics, and notifications - distribution lists. Includes System Health and Analytics. | % other Licenses | Included | 1 | $4,182 | $4,182 |
| 817-0160 | VPN* | VPN service: Needed for monitoring and remote support for the on-premises security network. Also for certain features such as DDE or Video Playback. | per Facility Served | Included | 1 | $500 | $500 |
| 817-0660 | Camera Local Recording* | Channel License for the connection of one (1) camera to a local NVR for recording. Includes the ability to configure the camera and the video events in BluSKY. | per Camera | Included | 64 | $123.45 | $7,901 |
| 817-0680 | Camera Cloud Recording | Channel License for the transmission of one (1) camera's video to send video events to the Cloud. | per Camera | Included | 64 | $98.76 | $6,321 |
*Required Licenses
**Includes the Milestone Care Plus Support
You can have some cameras only recording locally and other cameras recording locally and to the Cloud.
