8 Car DDE PACS - Readers Connected to Security System
System Overview
8 Car Destination Dispatch Elevator Physical Access Control System - Readers Connected to Security System
System Use

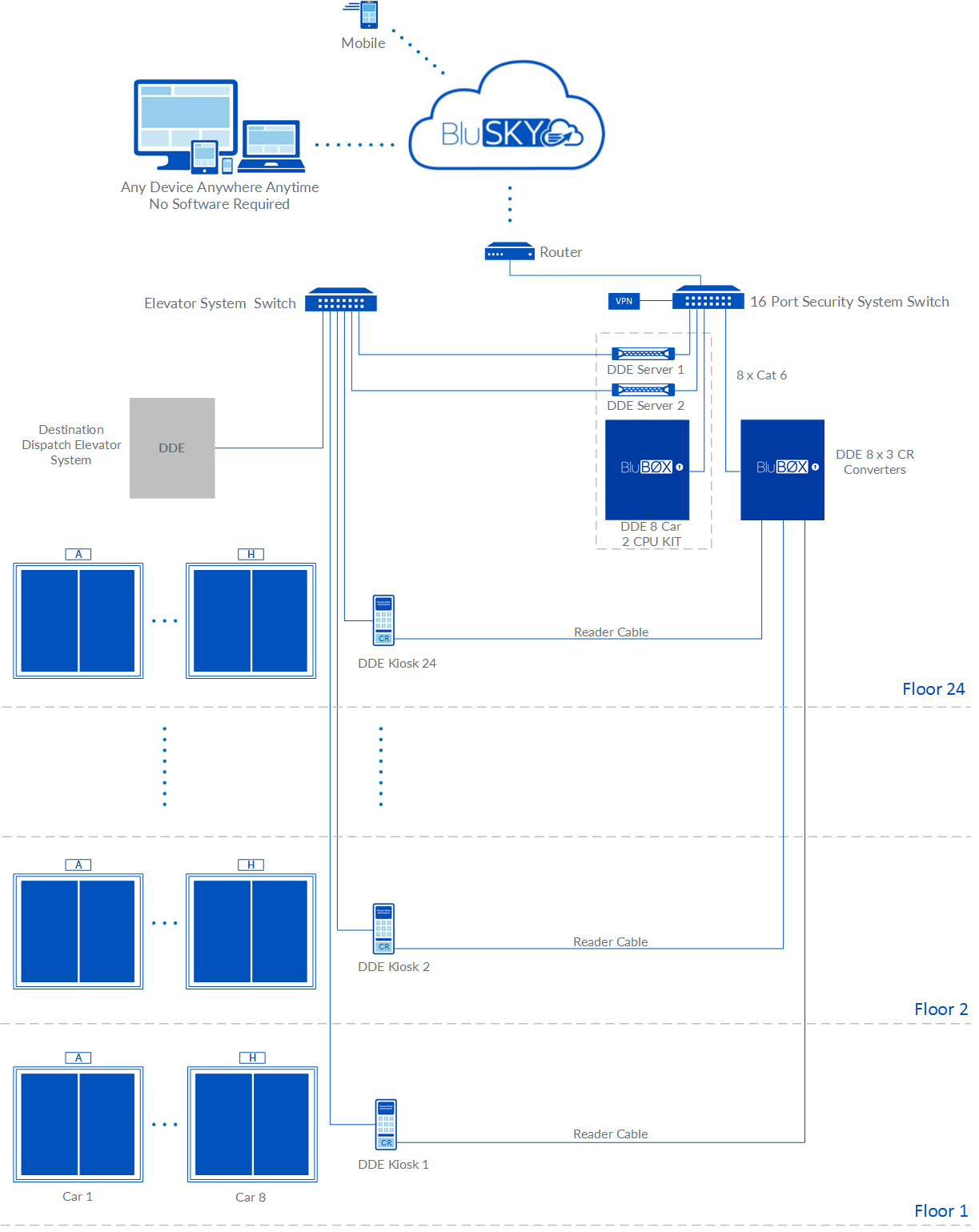

One Line System Diagram
Download the pdf: 8 Cars_24 DDE KP Rev 01.pdf
BluBØX Equipment and Services
| Part # | Item | Description | Incl/Opt | Qty | Unit | Extended |
|---|---|---|---|---|---|---|
| 770-5900 | Converter - 24 Reader kit - w/ FPO150-B100D8PM8PNL4E4M1-NLKIT | Converter Kit - Supports 6 Readers - Includes an E4M1 Enclosure with power and power management. Needed for DDE or Person Reader Applications | Included | 1 | $4,050.00 | $4,050.00 |
| 770-2005 | 8 Car - 2 CPU DDE Kit | Destination Dispatch Processor Kit - Up to 8 Elevator Cars - Dual Processor System - includes BluB0X Destination Dispatch Elevator Integration Software - installation & commissioning requires Professional Services Item # 800-5125. | Included | 1 | $17,003.00 | $17,003.00 |
| 160-2200 | Reader - HID RP40 iClass SE/Prox Wall Switch Wiegand Legacy | Reader - HID RP40 iClass SE/Prox Wall Switch Wiegand Legacy | Included | 24 | $267.00 | $6,408.00 |
| 400-1000 | Router - CradlePoint MBR1200B Broadband Router | Router - CradlePoint MBR1200B Broadband Router | Included | 1 | $434.00 | $434.00 |
| 410-1400 | 8 Port Unmanaged Gigabit Switch | Switch - HP ProCurve Switch 1410-8G (J9559A) | Included | 2 | $133.00 | $266.00 |
| 460-0500 | Power Management Gateway | Compute Stick and Support hardware that supports communication between LSP NL2 (Part # 670-2000) or NL4 (Part # 670-2100) and BluSKY Power Diagnostics. | Included | 1 | $360.00 | $360.00 |
| 320-1000 | Card - HID iClass w/ slot - 26 bit, F/C 201 | Card - HID iClass Composite PVC 2K/2Appl Areas Programed 26 bit FC 201 Blank Front and Back Matching sequential numbers horizontal slot | Included | 2,250 | $4.30 | $9,675.00 |
| 800-8020 | On Site SR Tech Support - Excl. T&M - Business Hours | Technicial Support - On-Site - Manager-Level - Excludes Travel & Lodging - Business Hours - Min: 4 hrs. - PER HOUR: | Included | 32 | $97.00 | $3,104.00 |
| 800-1225 | Project Management - Business Hours | Project Management - Remote - Business Hours - Min: 4 hrs. -PER HOUR: | Included | 30 | $182.00 | $5,460.00 |
| 800-0400 | Training - Video Conference - Business Hours | Training - Video Conference - Business Hours - PER HOUR: | Included | 8 | $97.00 | $776.00 |
| 800-5340 | BluSKY Database Construction Services | BluSKY Database Construction Services - Min: 4 hrs. - PER HOUR: | Included | 30 | $146.00 | $4,380.00 |
| 800-5125 | DDE Destination Dispatch Installation Support - FLAT RATE | Destination Dispatch Installation - Professional Support - FLAT RATE | Included | 1 | $2,966.00 | $2,966.00 |
| Part # | BluSKY License | Description | Unit Quantity | Incl/Opt | Qty | Unit | Extended |
|---|---|---|---|---|---|---|---|
| 817-0100 | Platform | Security system infrastructure and database usage. Required for any use of BluSKY. | per User | Included | 1,500 | $0.87 | $1,301 |
| 817-0140 | VPN | VPN service for remote support of local hardware. Pre-requisite for DDE and video systems. Recommended for systems with on- premise Client PCs or Servers. | per System | Included | 1 | $450.00 | $450 |
| 817-0320 | Access Control | Per-reader license - provides all the access cpontrol core functionality | Per Reader | Included | 24 | $137.40 | $3,298 |
| 817-0780 | DDE | On-going integration and support of a DDE system. | Fixed Price up to X Elevators | Included | 1 | $3,000.00 | $3,000 |
| 817-1080 | Power Management | Per-Device Power Management License. | Per Device per Facility | Included | 1 | $200.00 | $200 |
| 817-1120 | Intelligence | Intelligence functionality for all BluSKY modules - includes simple and complex rule creation and analytics - events - notifications - distributuion lists integration. BluSKY includes hundreds of standard intelligent rules out-of-the-BØX. | per System | Included | 1 | 10% of other licenses | $825 |
| 817-1220 | System Health | System health functionality - includes monitoring of BluSKY / BluCHIP software, hardware, database, security, power and communications. Also includes analytics, intelligent rules, events, notifications and integration with distribution lists. | per System | Included | 1 | 5% of other licenses | $413 |
MSRP Installed Cost
#Describe the costs
8_Car_DDE_PACS-Readers_Connected_to_Security_System.pdf
