24 Car DDE PACS - Readers Connected to Security System
System Overview
24 Car Destination Dispatch Elevator Physical Access Control System - Readers Connected to Security System
System Use

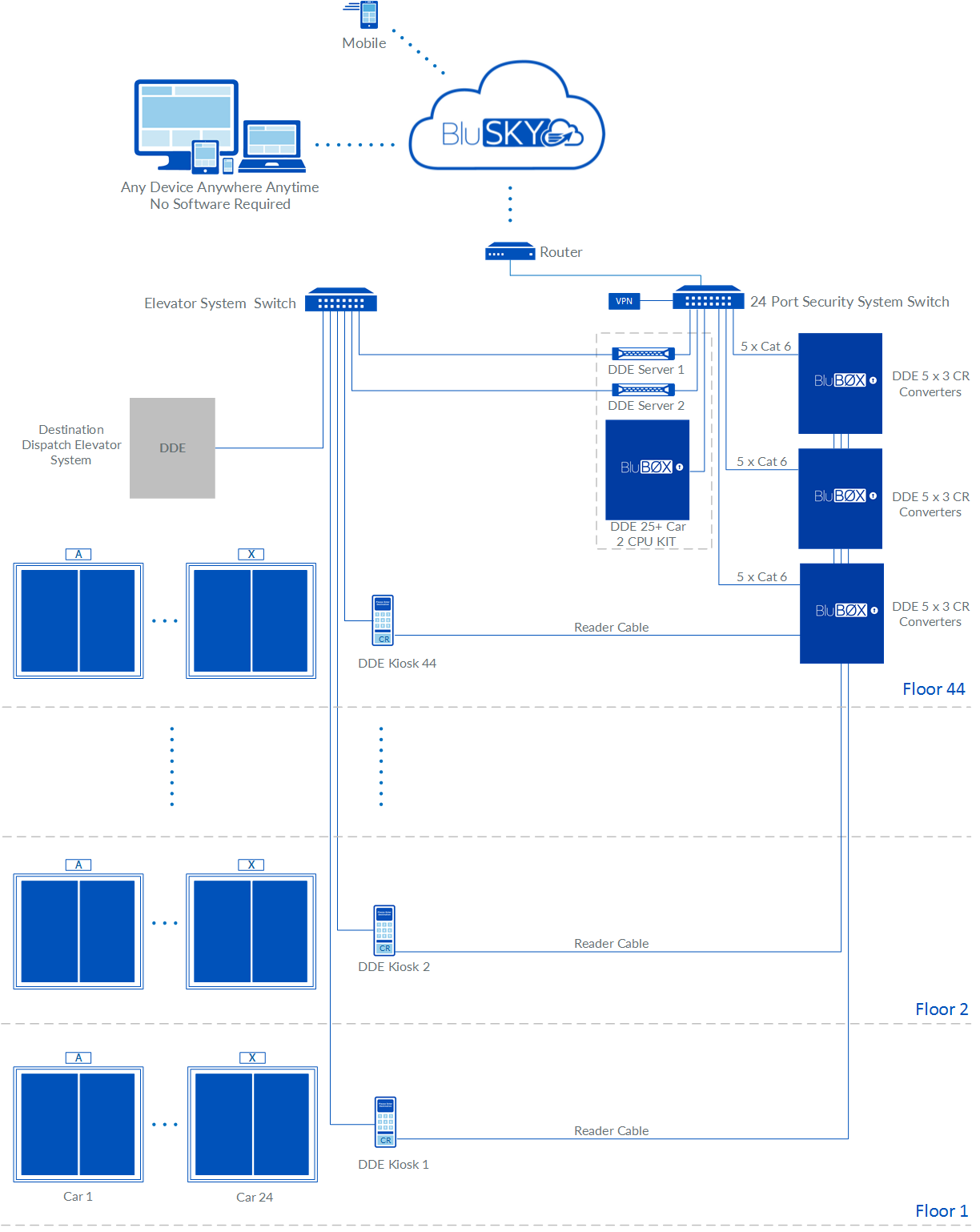

One Line System Diagram
Download the pdf: 24 Cars_44 DDE KP Rev 02.pdf
BluBØX Equipment and Services
| Part # | Item | Description | Incl/Opt | Qty | Unit | Extended |
|---|---|---|---|---|---|---|
| 770-2020 | 24 Car - 2 CPU DDE Kit | Destination Dispatch Processor Kit - Up to 24 Elevator Cars - Dual Processor System - includes BluB0X Destination Dispatch Elevator Integration Software - installation & commissioning requires Professional Services Item # 800-5125. | Included | 1 | $37,500.00 | $37,500.00 |
| 770-5600 | Converter - 15 Reader kit - w/ FPO150-B100D8PM8PNL4E4M1-NLKIT | Converter Kit - Supports 6 Readers - Includes an E4M1 Enclosure with power and power management. Needed for DDE or Person Reader Applications | Included | 6 | $3,144.00 | $18,864.00 |
| 160-2200 | Reader - HID RP40 iClass SE/Prox Wall Switch Wiegand Legacy | Reader - HID RP40 iClass SE/Prox Wall Switch Wiegand Legacy | Included | 88 | $266.00 | $23,408.00 |
| 460-0500 | Power Management Gateway | Compute Stick and Support hardware that supports communication between LSP NL2 (Part # 670-2000) or NL4 (Part # 670-2100) and BluSKY Power Diagnostics. | Included | 1 | $360.00 | $360.00 |
| 400-1000 | Router - CradlePoint MBR1200B Broadband Router | Router - CradlePoint MBR1200B Broadband Router | Optional | 1 | $434.00 | $0.00 |
| 410-1500 | 24 Port Managed Gigabit Switch - RM | Switch - HP ProCurve Switch 2920-24G (J9726A) | Included | 1 | $2,363.00 | $2,363.00 |
| 320-1000 | Card - HID iClass w/ slot - 26 bit - QTY 50 | Card - HID iClass Composite PVC 2K/2Appl Areas Programed 26 bit FC 201 Blank Front and Back Matching sequential numbers horizontal slot | Included | 90 | $214.00 | $19,260.00 |
| 800-8020 | On Site SR Tech Support - Excl. T&M - Business Hours | Technicial Support - On-Site - Manager-Level - Excludes Travel & Lodging - Business Hours - Min: 4 hrs. - PER HOUR: | Included | 72 | $97.00 | $6,984.00 |
| 800-1225 | Project Management - Business Hours | Project Management - Remote - Business Hours - Min: 4 hrs. -PER HOUR: | Included | 70 | $182.00 | $12,740.00 |
| 800-0400 | Training - Video Conference - Business Hours | Training - Video Conference - Business Hours - PER HOUR: | Included | 24 | $97.00 | $2,328.00 |
| 800-5340 | BluSKY Database Construction Services | BluSKY Database Construction Services - Min: 4 hrs. - PER HOUR: | Included | 30 | $145.00 | $4,350.00 |
| 800-5125 | DDE Destination Dispatch Installation Support - FLAT RATE | Destination Dispatch Installation - Professional Support - FLAT RATE | Included | 1 | $2,966.00 | $2,966.00 |
BluSKY Licenses
| Part # | BluSKY License | Description | Unit Quantity | Incl/Opt | Qty | Unit | Extended |
|---|---|---|---|---|---|---|---|
| 817-0100 | Platform | Security system infrastructure and database usage. Required for any use of BluSKY. Based on number of ACTIVE users in the System's database, excluding deleted and suspended. Pre-requisite for any other BluSKY license. | per User in a System | Included | 3,500 | $0.66 | $2,307.00 |
| 817-0140 | VPN | VPN service for remote support of local hardware. Pre-requisite for DDE and video systems. Recommended for systems with on- premise Client PCs or Servers. | per System | Included | 1 | $450.00 | $450.00 |
| 817-0320 | Reader | Required for every reader | Per Reader | Included | 88 | $82.17 | $7,231.00 |
| 817-0780 | DDE | Interface to a Destination Dispatch Elevator (DDE) System License. Covers the on-going integration and support of a DDE interface. | per Elevator | Included | 1 | $3,000.00 | $3,000.00 |
| 817-1080 | Power Management | Power Management. | per Device | Included | 1 | $200.00 | $200.00 |
| 817-1220 | System Health | Monitoring of BluSKY/BluCHIP software, hardware, database, security, power, and communications. Also includes analytics, intelligent rules, events, notifications and integration with distribution lists. | % other Licenses | Included | 1 | $659.40 | $659.40 |
| 817-0520 | System Analytics | Statistical analysis of all access control, alarm, video, vendor, DDE, visitor & incident events - displays the analytics, including counting, binning, trending, pattern recognition, correlation analysis and unusual event detection. Integrates with RND. | % other Licenses | Included | 1 | $1,318.80 | $1,318.80 |
| 817-1120 | Intelligence | Intelligence functionality for all BluSKY modules - includes simple and complex rule creation and analytics - events - notifications - distribution lists integration. BluSKY includes hundreds of standard intelligent rules out-of-the-BØX. | % other Licenses | Included | 1 | $2,637.60 | $2,637.60 |
MSRP Installed Cost
#Describe the costs
